- Designed for high flow rates, it can be used in single-tube or dual-tube mode. In dual-tube mode, it can be connected in series or in parallel.
- The weld-free design ensures a safe structural structure, and the one-piece casting results in a long lifespan for this heater.
- Use SS316L clean stainless steel tubing and separate it from the heating element to isolate the source of contamination.
- Permitted for use at high pressure up to 1500 psi.
- Very easy to install and use.
- Miniaturized designs replace large heat exchangers.
04.Gas Heating System

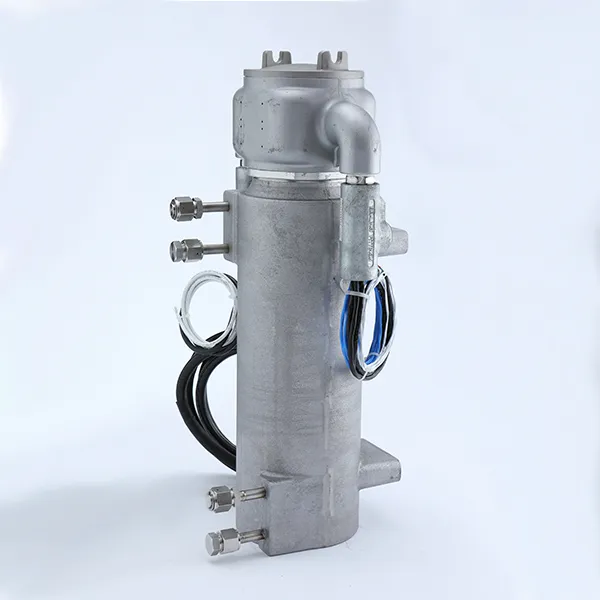

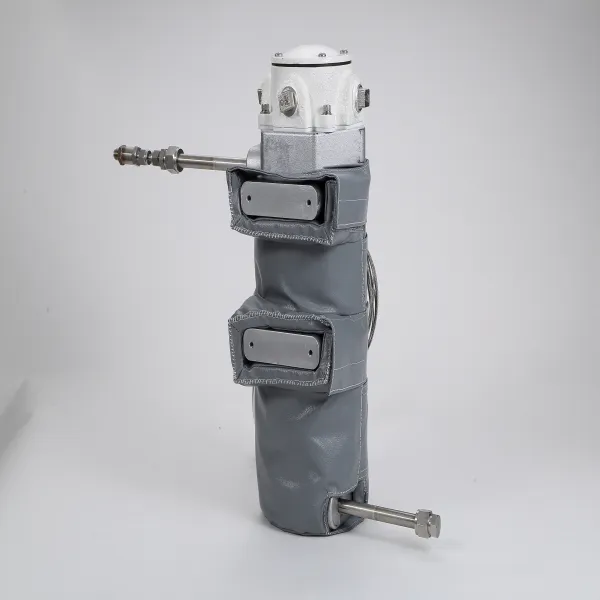

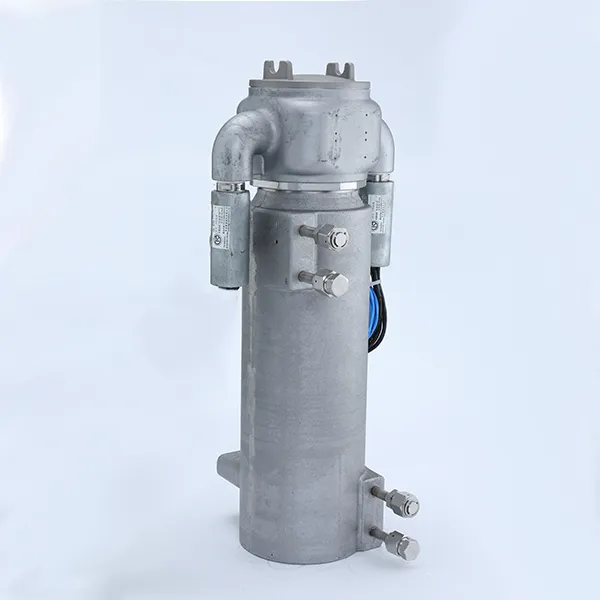

Cast-In Circulation Heaters
The cast aluminum circulating heater uses SS316L EP tubing in the main fluid flow channel, which keeps the fluid clean and free from contamination by metal oxidation of the heat source.
Features
Product Applications and Specifications
Product Applications
- General Industrial Applications.
- Solvent Heating.
- Air and Nitrogen Heating.
- Coating Heating.
- Steam Generator.
- DI Water Heating.
Product specifications
| Tube | Max. Operating Temperatures |
Voltage | Power Range | Integrated Sensor/ Controller (optional) |
Cleanliness | Certification |
|---|---|---|---|---|---|---|
| Single | 90°C | 208V, 380V (1P、3P) |
1.5KW~2.5KW | Type K TC Pt100 |
0.3µm<5 | NFPA79 UL508A IECEx TS |
| Dual | 110°C | 3KW~15KW |
