- Strengthen aluminum heat sink to improve circuit stability.
- Fast thermal conductivity: Internal magnesium oxide insulation ensures rapid temperature rise.
- Uses industrial-grade connectors to enhance system safety.

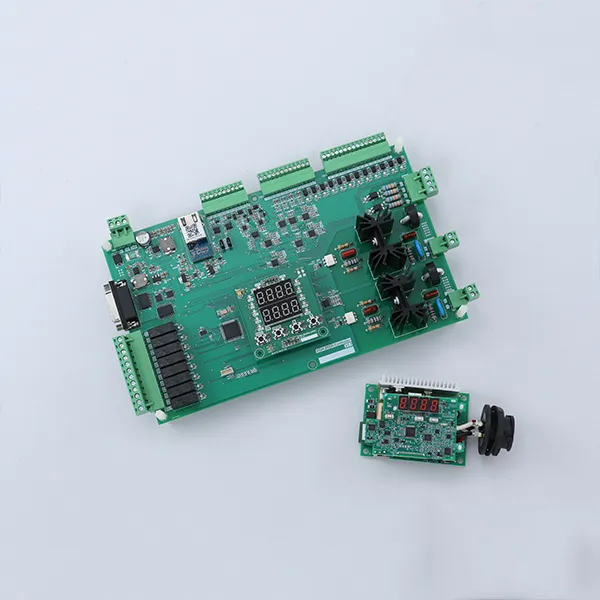

Multifunctional Control Unit
Heating Control Unit
Integrating temperature display, output control, and alarm display into one unit, it can save on control box wiring and control component costs for low-power heating applications. It also integrates temperature sensor, solid-state relay, over-temperature alarm, LED display, and network communication functions into one unit.
Features
Product Applications and Specifications
Product Applications

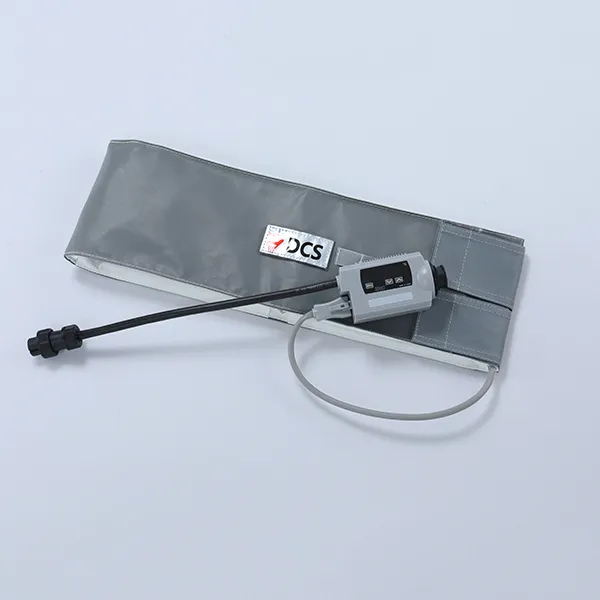

- Heating Jacket Control : Applied to various electric heating jackets, such as gas cylinder heating, valve body heating, etc.
- Pipeline Heating System : Used with heating pipelines to achieve constant temperature control and over-temperature protection.
- Production Line Equipment Retrofit : Can be flexibly integrated into existing equipment, saving space and wiring.
Product specifications
| Max. Display Temperatures |
Voltage | Max. Output Current |
Output Control |
Communication Interface |
Alarm Components |
Temperature Control Accuracy |
|---|---|---|---|---|---|---|
| 300°C | 110V ~230V AC | 6A | SSR | RS485 | Buzzer | ±0.5°C |
