- Magnetic induction heating efficiency up to 90% vs. traditional heating jacket 30-35%.
- Safe for personnel; the magnetic effect does not heat the coil body or the area around the container.
- Less surface heat generation, thus saving on air conditioning system operating costs.
- High energy efficiency, fast heating speed, reducing heating time by 75%.
- The heating coil itself does not generate heat, therefore it has a long service life.
02.Metal Cylinder/Drum Heating System

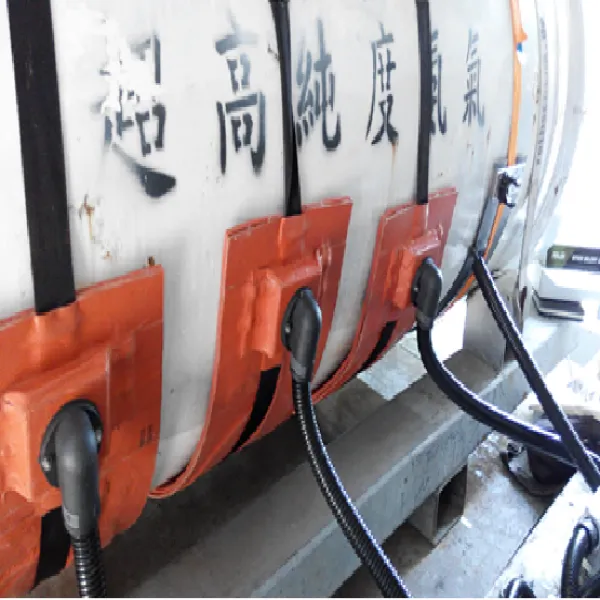

Induction Cylinder Heaters
The alternating magnetic field generated by high-frequency current is induced to the metal cylinder body, thereby generating countless small eddy currents and rapidly heating itself.
Features
Product Applications and Specifications
Product Applications

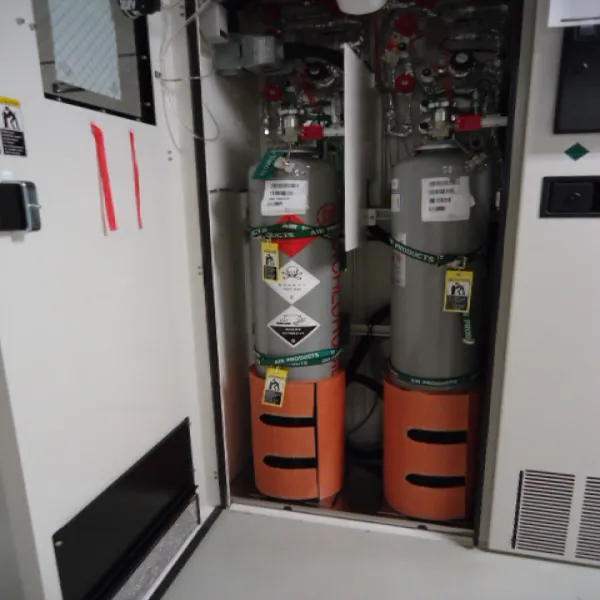

- Induction heating of various types of magnetically conductive gas cylinders.
- Injection molding machine runner/mold body heating.
| Cylinder Size | Temperature Range |
Voltage | Power Range | Integrated Sensor/ Controller (optional) |
Certification |
|---|---|---|---|---|---|
| 10L~50L T-Type Cylinder Y-Type Cylinder |
30°C ~ 180°C | 208V ~ 230V AC | 100W ~ 3500W | Type K TC Pt100 EGO Thermostat PID Controller |
CE NFPA 79 UL 508A IECEx TS |
