- Integrated structural design (double-layer reinforcement at fixed parts, with an additional wear-resistant layer at the bottom).
- The heating surface makes complete contact with the gas cylinder, resulting in excellent temperature uniformity.
- Various shapes, temperature zones, and other specifications can be designed according to requirements.
- Wear-resistant design extends service life.
- Carbon fiber heating wire is resistant to bending and has a longer service life.
- Custom heating element : Metal heating wire or graphite heating wire can be selected.
02.Metal Cylinder/Drum Heating System

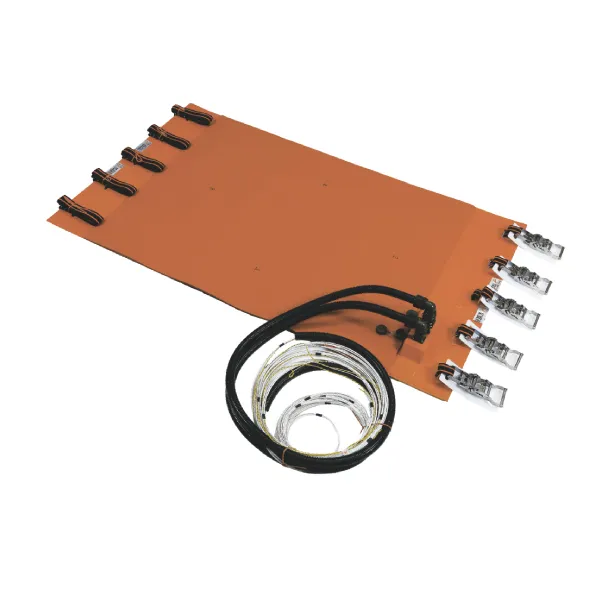

Gas Cylinder Heaters
Cylinder heaters are used to regulate and maintain the temperature of gas cylinders, ensuring gas flow and stability even in cold environments. These heaters are available in both fixed and variable thermostatic models to prevent pressure drops and crystallization from rendering cryogenic cylinders unusable. Cylinder heaters also provide uniform heating, ensuring that every part of the cylinder is kept at the appropriate temperature, thereby maximizing efficiency.
Features
Product Applications and Specifications
Product Application
- Gas supply system (e.g., Gas Panel).
- Bulk gas supply system (BSGS) cylinder heating (T-cylinder, Y-cylinder, etc.).
- Semiconductor manufacturing process.
- Panel, solar energy, and chemical process gas cylinder temperature control.
Product Specifications
| Model | Cylinder Size | Max. Operating Temperatures |
Voltage | Max. Watt Densities |
Integrated Sensor/ Controller (optional) |
Certification |
|---|---|---|---|---|---|---|
| Standard Models | 10L~50L T-Type Cylinder Y-Type Cylinder |
70°C | 110V~230V | Custom (Configurable upon request) |

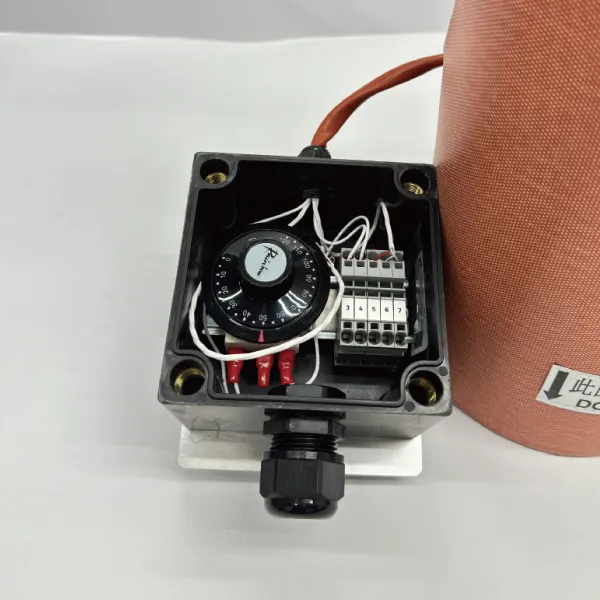

Type K TC Pt100 Thermostat PID Controller |
– |
| High-End Models | Type K TC Pt100 EGO Thermostat PID Controller |
– | ||||
| Explosion-Proof Models | Type K TC x3 sets Pt100 x3 sets Thermostat PID Controller |
IECEx TS |
