- Flexible design allows for close fitting of various irregular shapes (such as bends, tees, and valve bodies).
- Uniform heating : The embedded heating wire is evenly distributed, preventing localized overheating.
- High insulation and moisture resistance : Silicone has excellent insulation properties, suitable for humid or clean environments.
- Easy installation : Quick installation and removal using Velcro, fasteners, or wrapping methods.
- High customization capability : Size, shape, voltage, power, and sensing points can be defined according to customer needs.
03.Heating Jackets

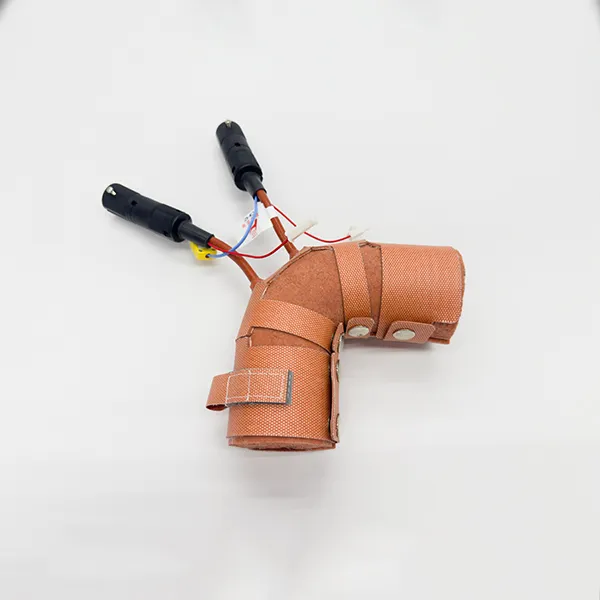

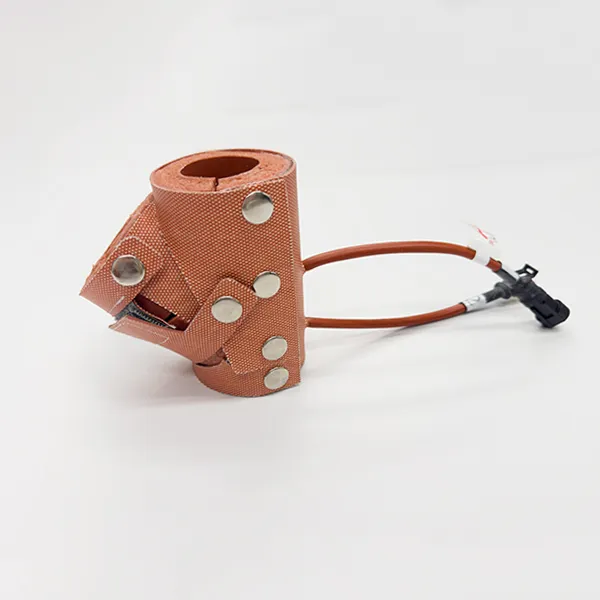

Silicon Rubber Heater
It is mainly used for moisture removal. It uses non-flammable silicone (silica gel) material and attaches the designed heating plate and thermal insulation cotton device to the outer surface of the cavity to evaporate the water vapor attached to the inner wall of the cavity and accelerate the machine vacuum to meet the process requirements.
Features
Product Applications and Specifications
Product Applications
- Heating gas delivery pipes, valves, VMBs, etc.
- Heating vacuum valves and cavity interfaces to prevent gas condensation and deposition.
- Maintaining stable temperature at the inlet and outlet of chemical supply modules and tanks.
- Insulated pipeline delivery systems (e.g., pharmaceutical liquids, food pastes, etc.).
| Max. Operating Temperatures |
Voltage | Max. Watt Densities |
Integrated Sensor/ Controller (optional) |
Material | Pipe Dimensions |
|---|---|---|---|---|---|
| 180°C | 110V ~ 230V | Custom (Configurable upon request) |
Type K TC Pt100 Thermostat PID Controller |
Silicone Rubber | 1.5 ~ 6 in |
