- The flexible power density design can be adjusted to meet customer application requirements and improve efficiency.
- It has excellent resistance to chemical corrosion and can withstand acid, alkali and various organic gas environments.
- Meets the requirements of pollution-free processes. Flexible wrapping allows for cutting and wrapping of valves, flanges, and irregularly shaped parts according to the equipment shape.
- The modular installation design incorporates various fixing methods such as Velcro, D-rings, and pull ropes, facilitating quick disassembly and replacement.
03.Heating Jackets

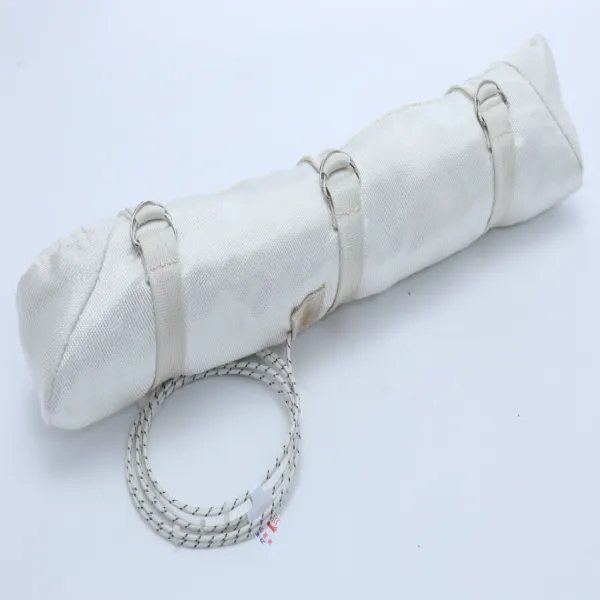

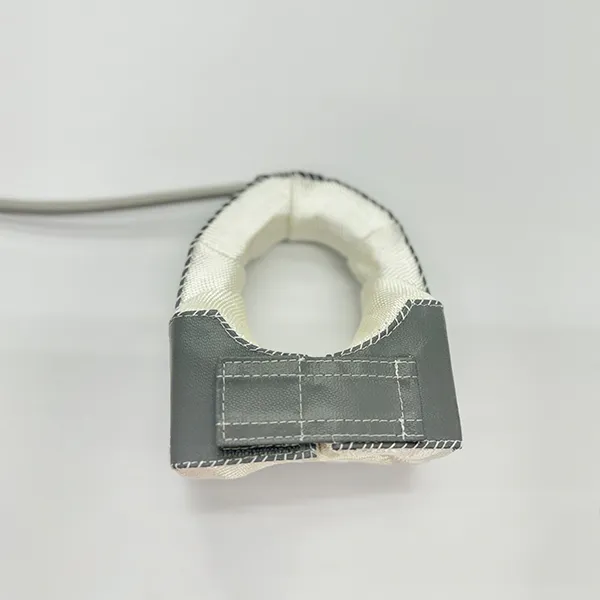

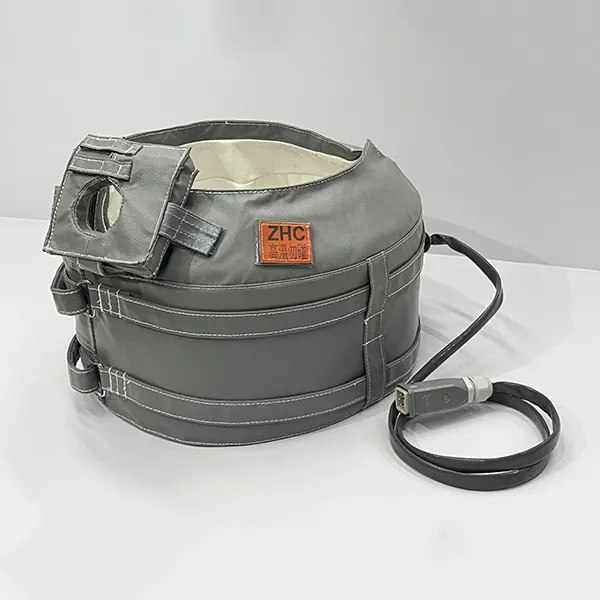

Heating Jackets
This flexible heater features an outer layer made of high-temperature resistant and chemically resistant PTFE cloth or high-purity silicon dioxide (SiO2) fiber cloth. Internally, it can integrate sensors and controllers, making it suitable for high-cleanliness environments such as semiconductor process piping and valve insulation, gas pipeline heating, reactor enclosures, and hot zone insulation. The product boasts a detachable design for easy installation and maintenance, and sizes and power outputs can be customized to meet customer requirements.
Features
Product Applications and Specifications
Product Application
- Thermal control systems used in semiconductor manufacturing processes and gas and liquid delivery pipelines( PECVD、ALD、CVD、EPI、Etching、CMP ) 。
- Transport and vehicle preheating.
- Heating and covering of vacuum chambers, petrochemical equipment, valve bodies and flanges.
- Heat-resistant coating requirements in aerospace and military equipment.
Product Specifications
| Max. Operating Temperatures |
Voltage | Max. Watt Densities |
Integrated Sensor/ Controller (optional) |
Material | Pipe Dimensions |
|---|---|---|---|---|---|
| 240°C | 110V ~ 230V | Custom (Configurable upon request) |
Type K TC Pt100 Thermostat PID Controller |
PTFE Cloth | 1/4 ~ 12 in |
| 500°C | Silica Cloth | 1 ~ 4 in |
